LinkIt Smart 7688 and Embedded Linux
Jollen / Mokoversity.com
jollen@jollen.org
2015/12/23

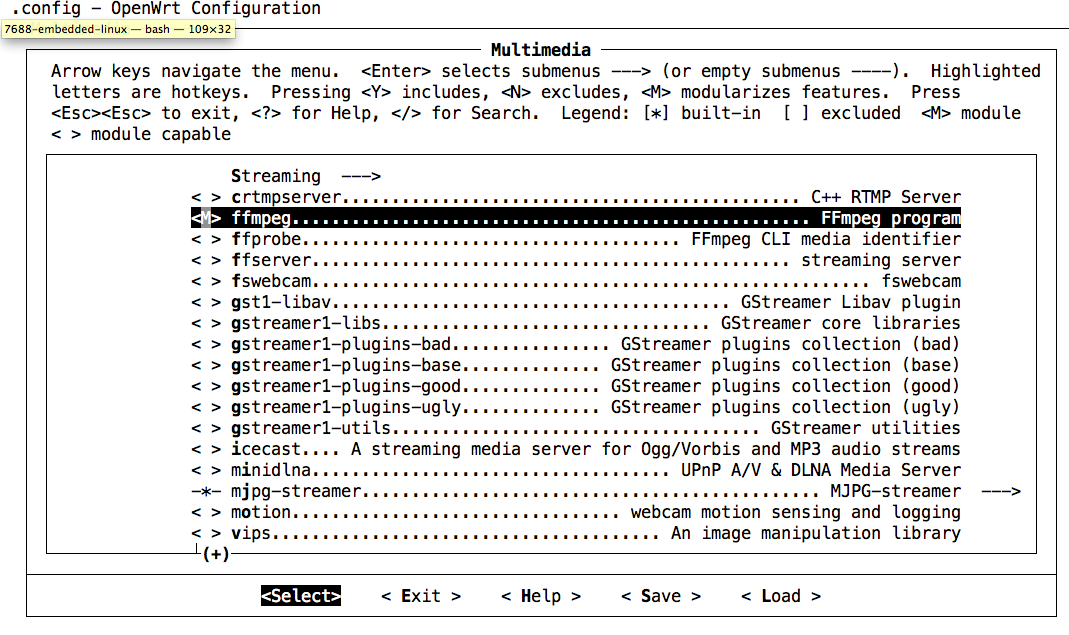

--- # Agenda * 編譯與安裝 OpenWrt 套件 * Kernel Modules * OpenWrt 的 root filesystem 結構 * Service Daemon --- # OpenWrt * Embedded Linux distribution * util-linux, uClibc and BusyBox * Web interface (LuCI) --- # 編譯與安裝 OpenWrt 套件 ## Step 0: Ubuntu Host 準備 Ubuntu 開發主機,並安裝所需套件: ~~~~~~~~ $ sudo apt-get install git g++ libncurses5-dev subversion \ libssl-dev gawk libxml-parser-perl unzip ~~~~~~~~ --- # 編譯與安裝 OpenWrt 套件 ## Step 1: Download OpenWrt Dist 下載 OpenWrt 套件: ~~~~~~~~ $ git clone git://git.openwrt.org/openwrt.git ~~~~~~~~ --- # 編譯與安裝 OpenWrt 套件 ## Step 2: Update Feeds 加入 LinkIt Smart 7688 Feeds 並更新 OpenWrt: ~~~~~~~~ $ cd openwrt $ cp feeds.conf.default feeds.conf $ echo src-git linkit https://github.com/MediaTek-Labs/ linkit-smart-7688-feed.git >> feeds.conf $ ./scripts/feeds update $ ./scripts/feeds install -a ~~~~~~~~ --- # 編譯與安裝 OpenWrt 套件 ## Step 3: Menuconfig 檢查必要套件,並進入設定選單: ~~~~~~~~ $ make prereq $ make menuconfig ~~~~~~~~ --- # 編譯與安裝 OpenWrt 套件 ## Step 4: Setup Options * Select the options as below: * Target System: Ralink RT288x/RT3xxx * Subtarget: MT7688 based boards * Target Profile: LinkIt7688 --- # 編譯與安裝 OpenWrt 套件 ## Step 5: Build OpenWrt 編譯 OpenWrt: ~~~~~~~~ $ make V=99 ~~~~~~~~ --- # 編譯與安裝 OpenWrt 套件 ## Step 6: Update 7688 編譯好的 firmware 檔案位於 *bin/ramips/openwrt-ramips-mt7688-LinkIt7688-squashfs-sysupgrade.bin*,將此檔案上傳至 7688 並更新即可。 --- # 編譯與安裝 OpenWrt 套件 ## Step 1: Application Packages ![](images/5.png) --- # 編譯與安裝 OpenWrt 套件 ## Step 2/3: Build and Install ``` ./bin/ramips/packages/packages/ffmpeg_2.6.2-1_ramips_24kec.ipk ``` 使用 `opkg install

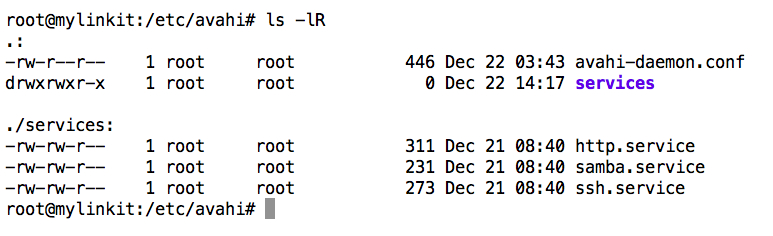

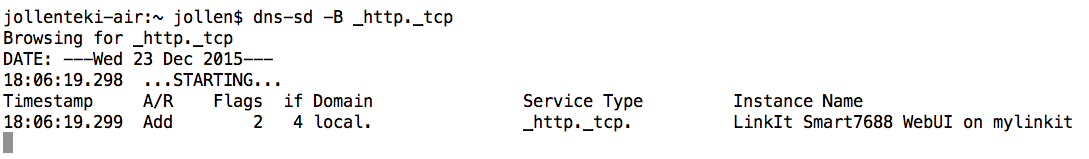

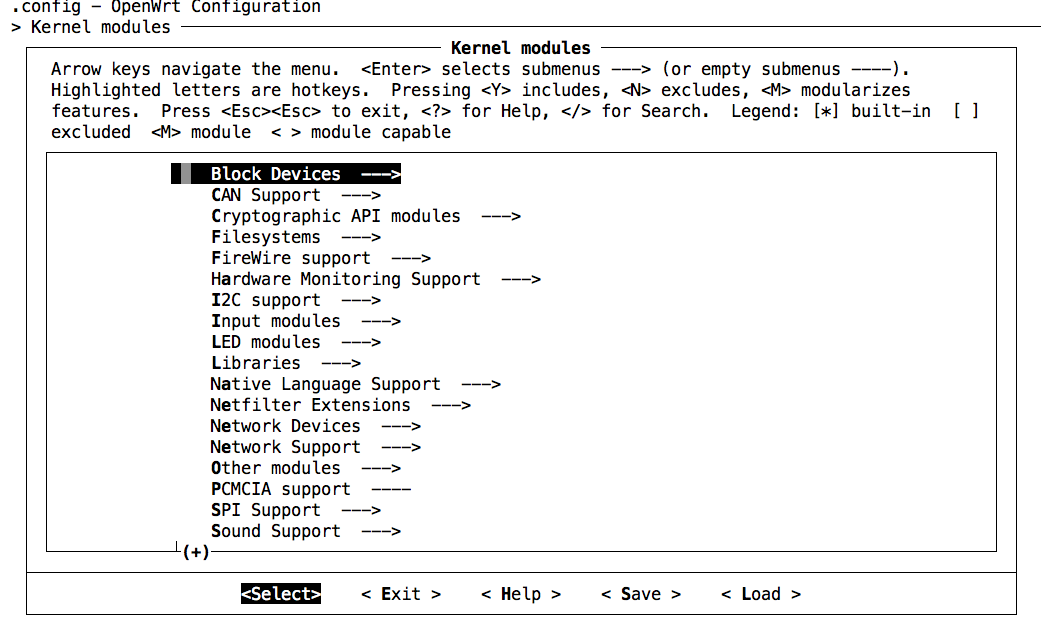

` --- # Kernel Modules * 需要額外的驅動程式 --- # Kernel Modules # Step 1: Menuconfig --- # Kernel Modules # Step 2: Additional Modules ![](images/1.png) --- # Kernel Modules # Step 3: Install * 不需要重新整個 Firmware * Kernel Modules 目錄 ``` ./staging_dir/target-mipsel_24kec+dsp_uClibc-0.9.33.2/root-ramips/lib/modules/3.18.23/rtl8192de.ko ./staging_dir/target-mipsel_24kec+dsp_uClibc-0.9.33.2/root-ramips/lib/modules/3.18.23/rtl8192ce.ko ./staging_dir/target-mipsel_24kec+dsp_uClibc-0.9.33.2/root-ramips/lib/modules/3.18.23/rtl_pci.ko ./staging_dir/target-mipsel_24kec+dsp_uClibc-0.9.33.2/root-ramips/lib/modules/3.18.23/rtl8192cu.ko ./staging_dir/target-mipsel_24kec+dsp_uClibc-0.9.33.2/root-ramips/lib/modules/3.18.23/rtl_usb.ko ./staging_dir/target-mipsel_24kec+dsp_uClibc-0.9.33.2/root-ramips/lib/modules/3.18.23/rtl8187.ko ./staging_dir/target-mipsel_24kec+dsp_uClibc-0.9.33.2/root-ramips/lib/modules/3.18.23/rtl8192c-common.ko ./staging_dir/target-mipsel_24kec+dsp_uClibc-0.9.33.2/root-ramips/lib/modules/3.18.23/rtlwifi.ko ``` --- # Service Daemon * avahi - Avahi is a system which facilitates service discovery on a local network via the mDNS/DNS-SD protocol suite * uhttpd - Web server * Samba - Samba is a free software re-implementation of the SMB/CIFS networking protocol * ntpd - The Network Time Protocol daemon (ntpd) is an operating system program that maintains the system time in synchronization with time servers * dropbear - SSH server and client --- # Service Daemon / avahi ## Configuratin Files ![](images/2.png) --- # Service Daemon / avahi ## Service Group ``` <?xml version="1.0" standalone='no'?><!--*-nxml-*--> <!DOCTYPE service-group SYSTEM "avahi-service.dtd"> <service-group> <name replace-wildcards="yes">LinkIt Smart7688 WebUI on %h</name> <service> <type>_http._tcp</type> <port>80</port> <txt-record>path=/</txt-record> </service> </service-group> ``` --- # Service Daemon / avahi ## Service Discover ![](images/3.png)
